Have you ever watched the hands of a clock move, seen a merry-go-round spin, or noticed the Earth turning? These all involve rotation—the spinning of an object around a fixed point or axis. Rotation is everywhere!
When you ride a merry-go-round or ride a bicycle, the wheels rotate, making everything move smoothly. The Earth itself rotates, which gives us day and night. Even when you stir your drink, you’re creating a small rotation!
Rotation is a transformation that moves an object around a fixed point but its size and shape are not changed. Rotations are sometimes called turns. The point around which a rotation occurs is called the centre of rotation, and the distance a shape turns is called the angle of rotation
In this lesson, we will explore the beauty of rotation, understand its principles, and see how it plays a role in everything.
Subsection2.3.1Properties of Rotation
Activity2.3.1.
Work in pairs
\(\textbf{What you need:}\) Graph paper, a ruler, a protractor and a pencil.
(a)

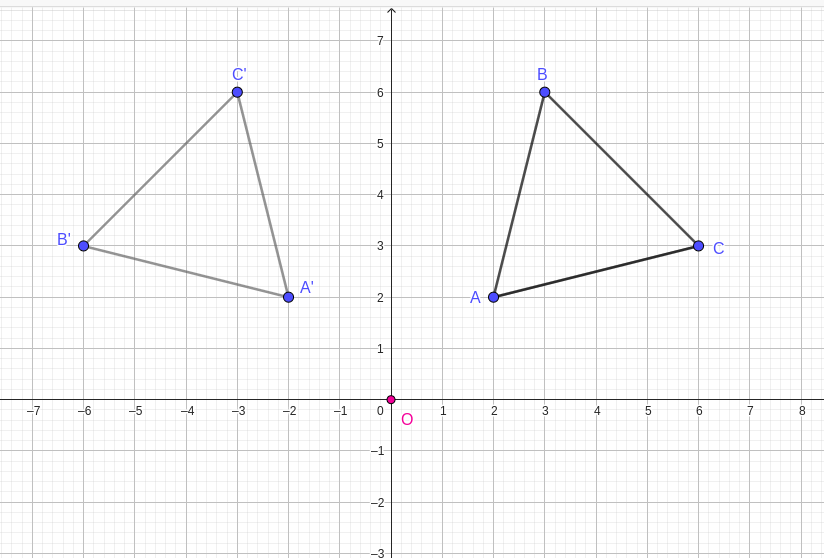

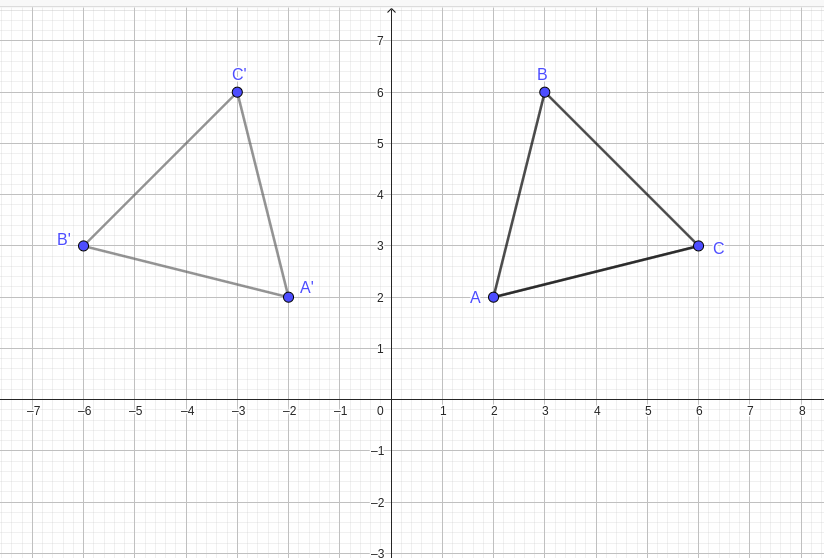

On a graph paper, draw triangle \(ABC\) and its image, triangle \(A'B'C'\) as shown in the figure below.
(b)
Pick a point on the graph to act as the centre of rotation. Mark this point \(O\)
(c)
Using a ruler, draw a straight line from point \(A\) to \(O\) and also from point \(A'\) to \(O\) as shown below. Measure the distance \(OA\) and \(OA'\) and record your results. What do you notice?
(d)
Similarly, draw a straight line from point \(B\) to \(O\) and also from point \(B'\) to \(O\text{.}\) Measure the distance \(OB\) and \(OB'\) and record your results. What do you notice?
(e)

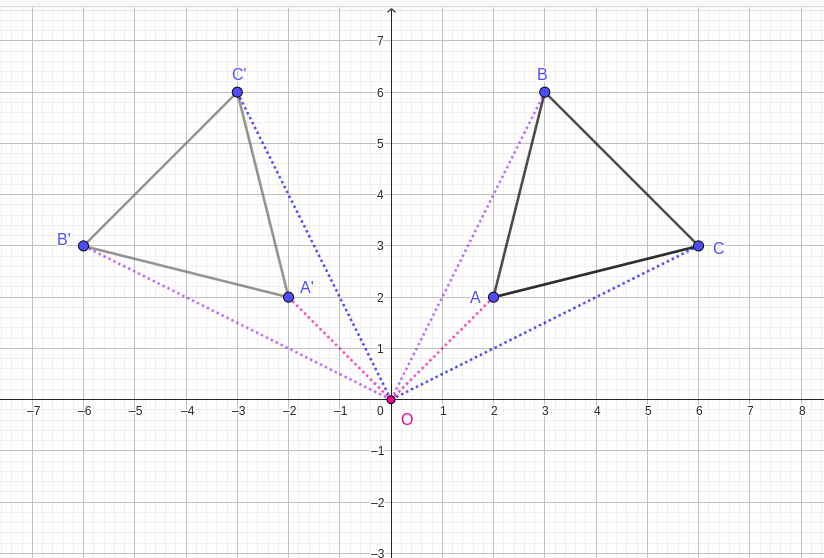

Finally, draw a straight line from point \(C\) to \(O\) and also from point \(C'\) to \(O\text{.}\) Measure the distance \(OC\) and \(OC'\) and record your results. What do you notice?
(f)

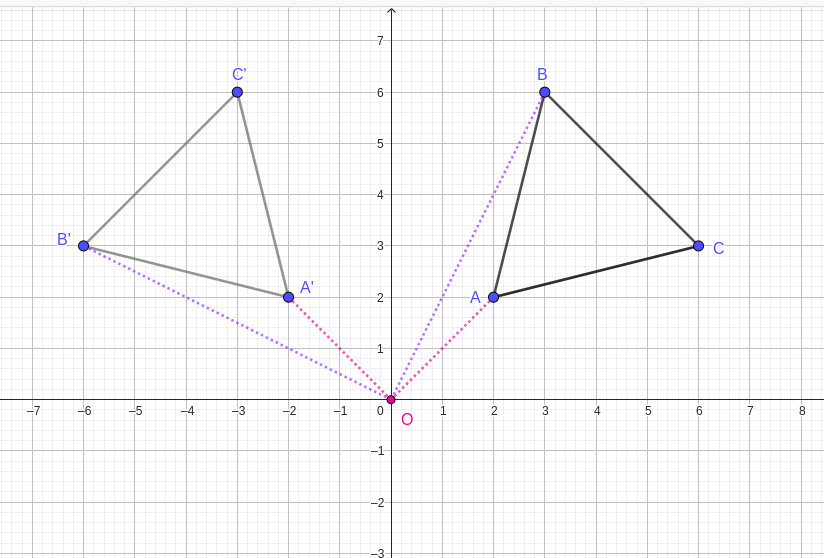

Now using a protractor, measure \(\angle\, AOA'\text{,}\)\(\angle\, BOB'\) and \(\angle\, COC'\) and record your results. What do you notice?
\(\textbf{Key Takeaway}\)

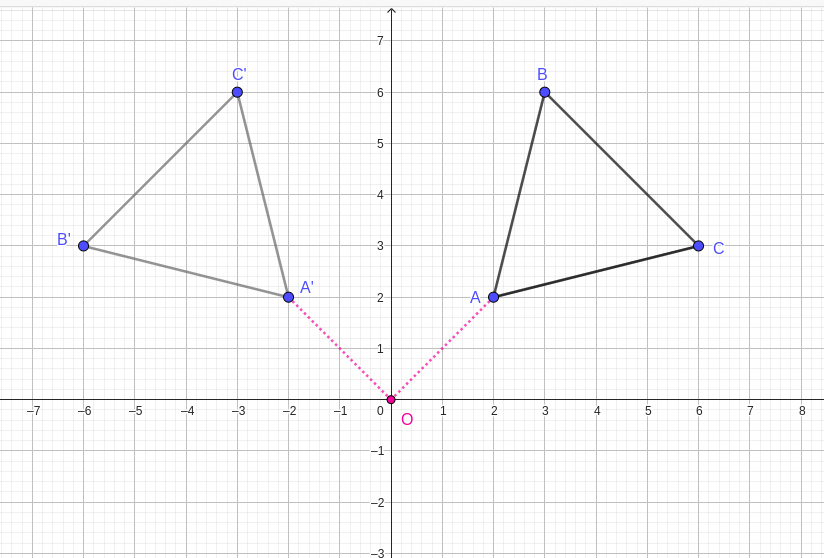

The distance \(AO=A'O\text{,}\)\(BO=B'O\) and \(CO=C'O\)
The distance from a point to the centre of rotation is the same as the distance from the image of that point to the centre of rotation.
The angle of rotation is the same for all points in the shape.
In this case, Point \(O\) is the centre of rotation and angle \(90^\circ\) is the angle of rotation.
\(\textbf{Note:}\)
A rotation in the anticlockwise direction is taken to be positive i.e a rotation of \(45^\circ\) anticlockwise is \(+45^\circ\)
A rotation in the clockwise direction is taken to be negative i.e a rotation of \(45^\circ\) clockwise is \(-45^\circ\)
In general, for a rotation to be completely defined, the centre and angle of rotation must be stated.
Example2.3.1.

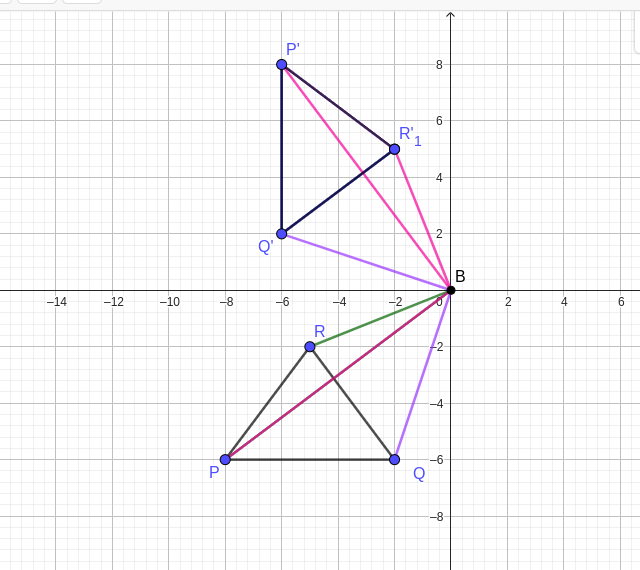

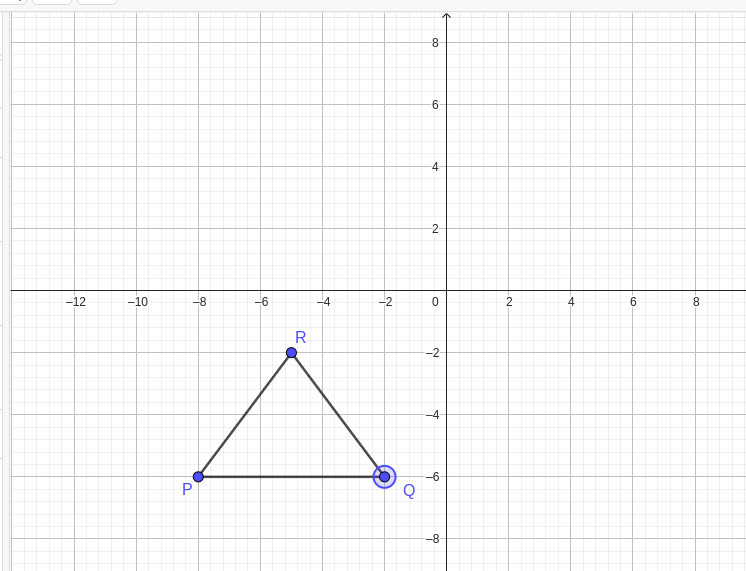

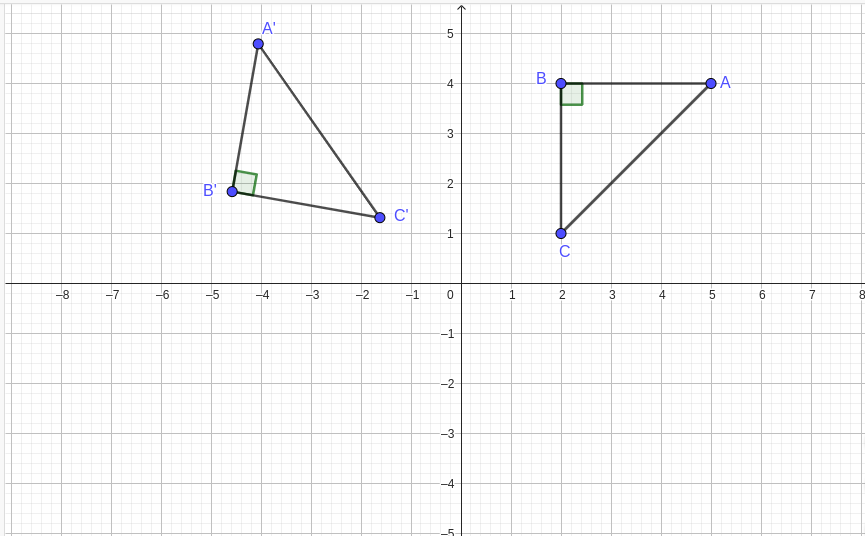

The coordinates of the vertices for triangle \(PQR\) that can be graphed in the coordinate plane are \((-8,-6)\text{,}\)\((-2,-6)\) and \((-5,-3)\) as shown below. The triangle is rotated through \(90^\circ\) in a clockwise direction about the origin to produce triangle \(P'Q'R'\text{.}\)Copy the figure and draw triangle \(P'Q'R'\)
Figure2.3.2.
Solution.
Figure2.3.3.
Subsubsection2.3.1.1Centre and Angle of Rotation
Activity2.3.2.
\(\textbf{ Work in pairs.}\)
\(\textbf{What you need:}\) Graph paper, a ruler, a protractor and a pencil

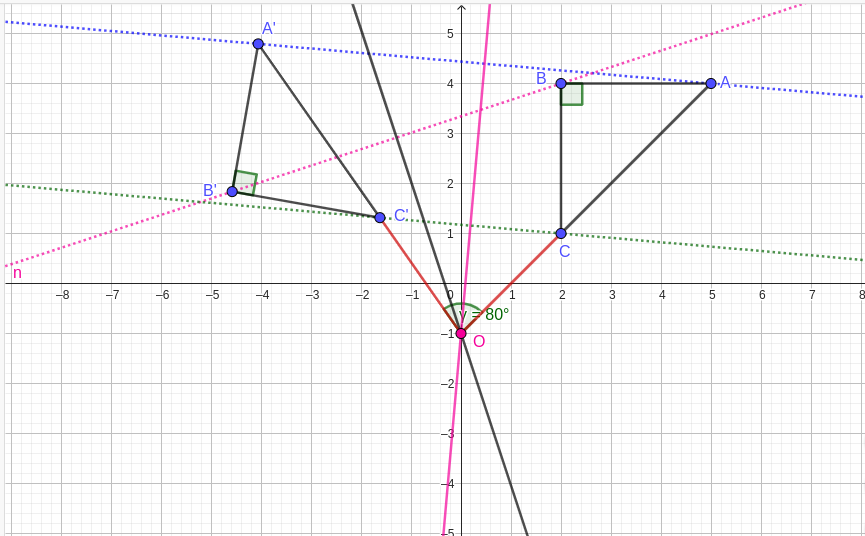

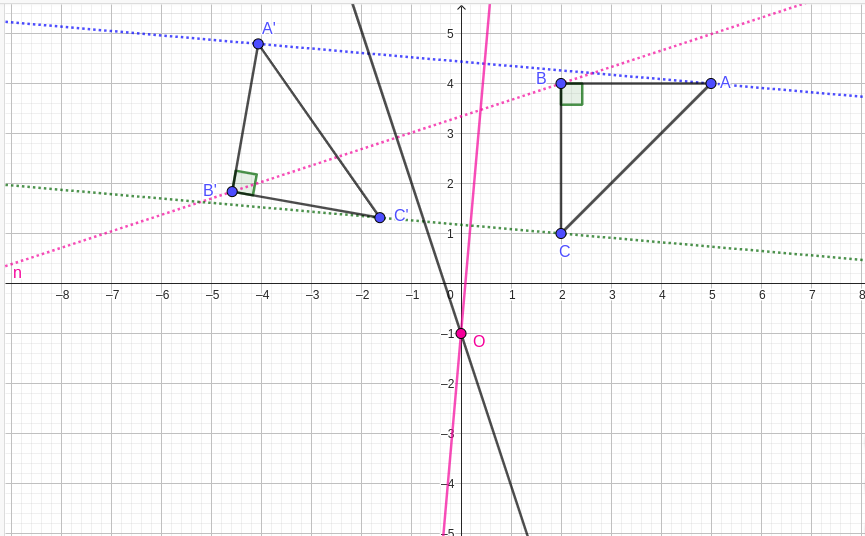

On a piece of graph paper draw triangle \(ABC\) and its image \(A'B'C'\) as shown in the figure below.

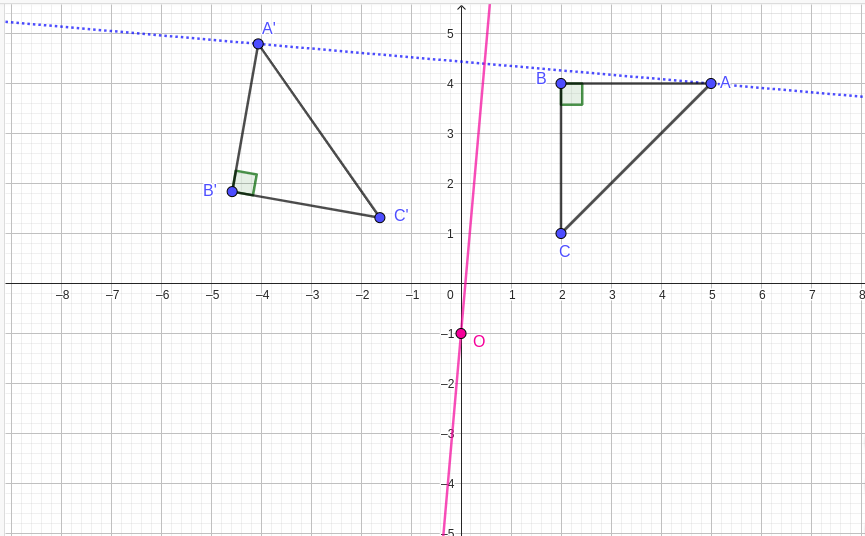

Join point \(A\) to \(A'\) and construct a perpendicular bisector to \(AA'\) as shown below;
Similary Join point \(B\) to \(B'\) and \(C\) to \(C'\) and construct a perpendicular bisector to \(BB'\) and \(CC'\) as shown below;
Now join point \(O\) to \(C'\) and \(C\) and measusure \(\angle\, COC'\)
Similary join point \(O\) to \(B'\) and \(B\) and \(O\) to \(A'\) and \(A\)and measusure \(\angle\, BOB'\) and \(\angle\,AOA'\text{.}\) What do you notice?
Share your work with other leaners in class
\(\textbf{Key Takeaway}\)
Triangle \(A'B'C'\) is the image of triangle \(ABC\) after a rotation.The centre and angle of rotation can be found by drawing the perpendicular bisectors of the lines between two sets of points, \(C\) and \(C'\) and \(B\) and \(B'\) or \(A\) and \(A'\)
The point where two perpendicular bisectors intersect is called \(\textbf{the centre of rotation.}\) To find \(\textbf{ the angle of rotation}\text{,}\) join \(C'\) and \(C\) to the centre of rotation and measure the angle between these lines.

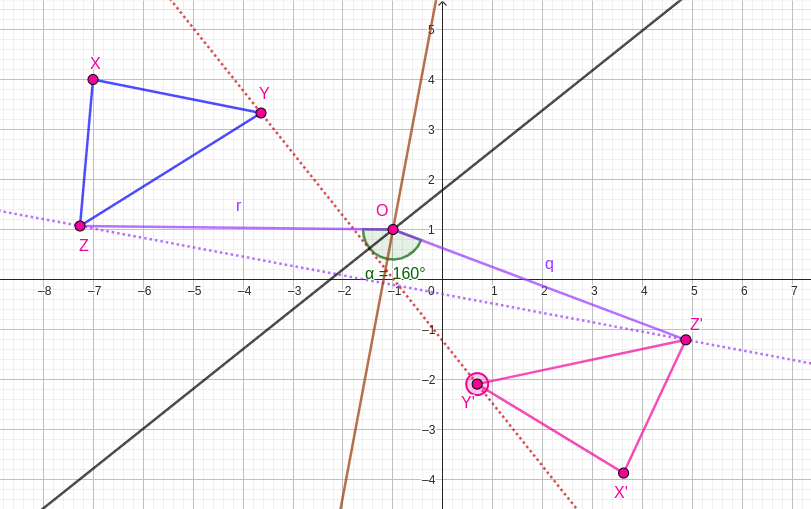

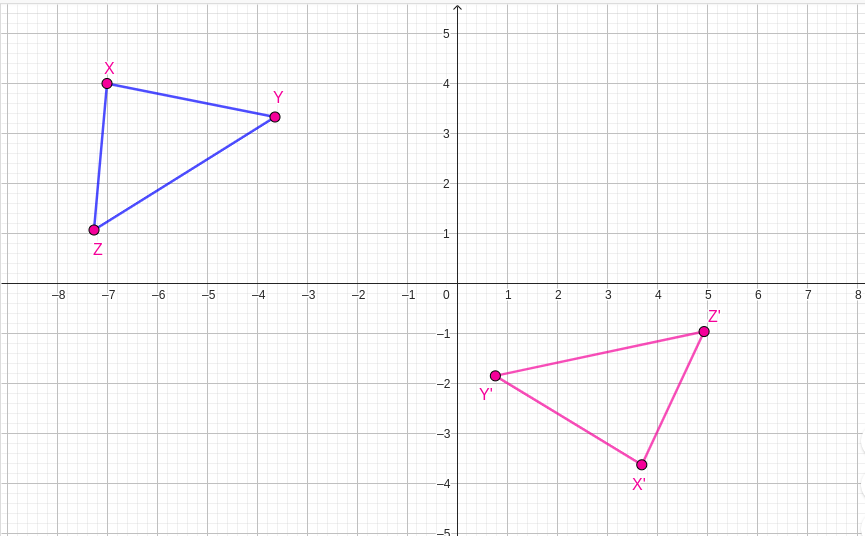

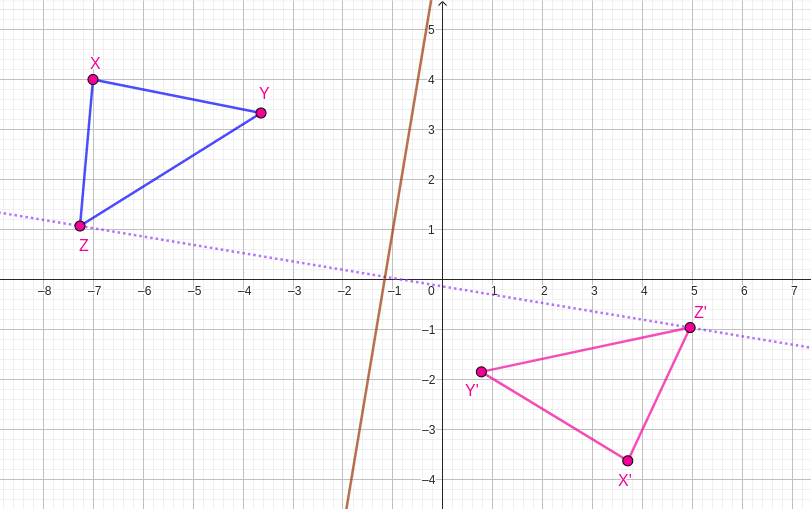

In the figures below, the triangle \(X'Y'Z'\) is the image of triangle \(XYZ\) after rotation. Find the centre and angle of rotation
Solution.

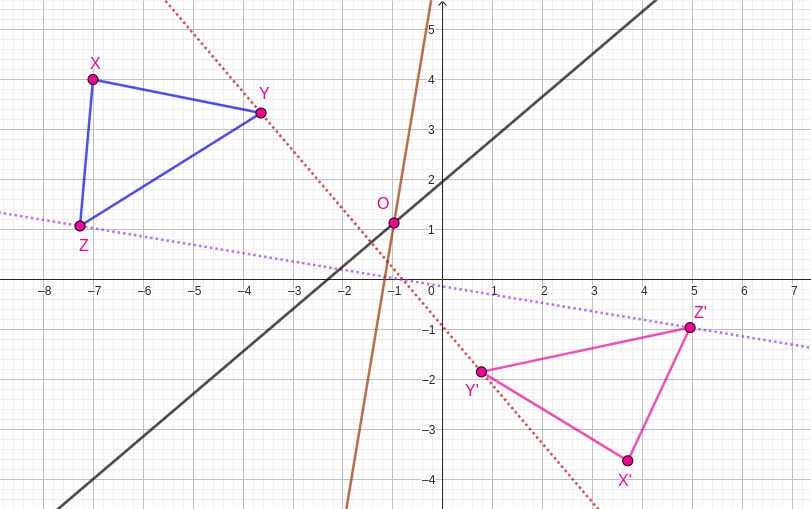

In order to determine the centre and angle of rotation we have to follow the following steps:
Join point \(Z\) to \(Z'\) and construct a perpendicular bisector to \(ZZ''\) as shown below
Also join point \(Y\) to \(Y'\) and construct a perpendicular bisector to \(YY'\) as shown below. Mark the point of intersection of perpendicular bisectors \(O\)
Similary you can join \(X\) to \(X'\) and construct a perpendicular bisector to \(XX'\)
\(\textbf{Note}\) You can use only two points.
The point where perpendicular bisectors intersect is the centre of rotation.
Now join \(Z\) and \(Z'\) to the centre of rotation \(O\text{.}\) Measure \(\angle, ZOZ'\) using a protractor.
Centre of rotation \(=(-1,1)\)
Angle of rotation \(=-160^\circ\) since rotation is done in a clockwise direction
ExercisesExercises
1.

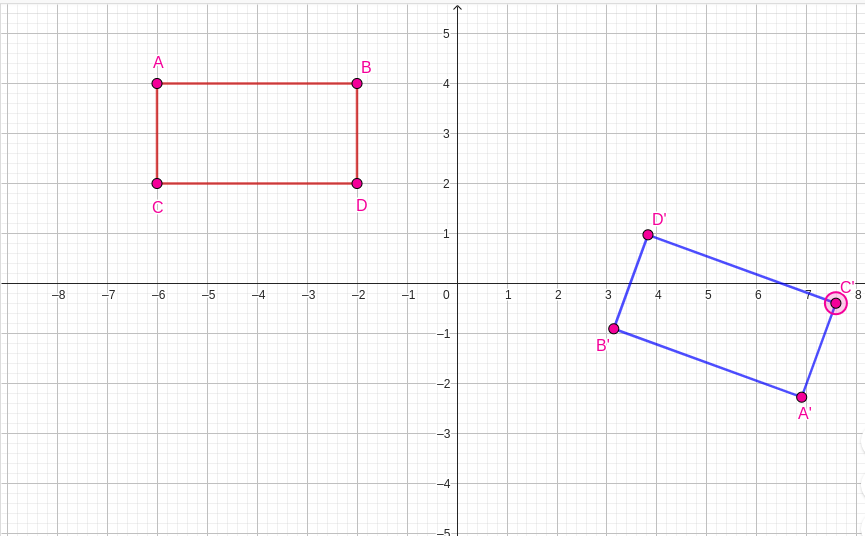

In the figure below, rectangle \(A'B'C'D'\) is the image of rectangle \(ABCD\) under a rotation, centre \(O\)
(a). By construction,find and label the centre \(O\) of roration.
(b) Determine the angle of rotation.
Subsection2.3.2Rotation on Different Planes
Rotation on different planes" refers to the concept of rotating an object or point around various axes within different planes in a three-dimensional space.
Subsubsection2.3.2.1Rotation in the Cartesian Plane
Activity2.3.3.
Work in pairs
(a)
Draw a large \(X-\) axis (horizontal) and \(Y-\) axis (Vertical) on a graph of paper. Mark the origin \((0,0)\) where the two axis meet.
(b)
Pick any point \(P\, (x,y)\) and plot this point on the plane and label it for example let;s use \(P\, (3,2)\text{.}\)
(c)
Rotate the point in a counterclockwise direction around the origin with different angles as shown below:

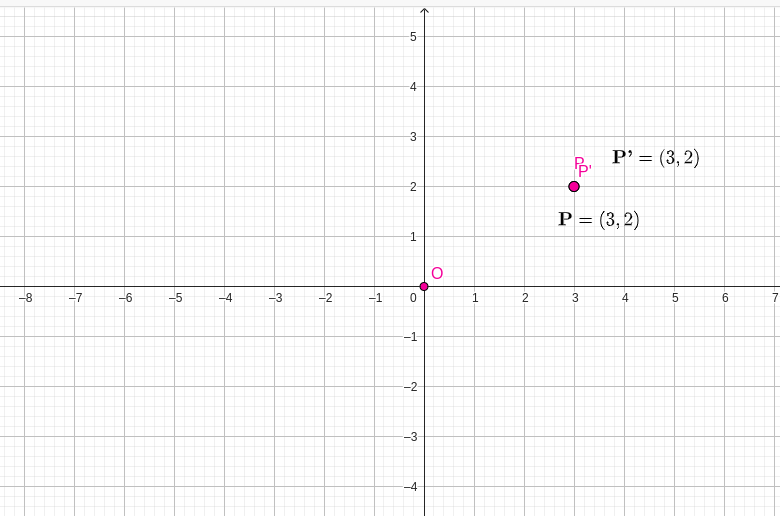

The image of point \(P\) remains the same when rotated through \(\pm\, 180^\circ\) (clockwise or counterclockwise) about the origin.
A rotation through \(\pm\, 360^\circ\) and \(0^\circ\) about the origin does not change the position of the object.

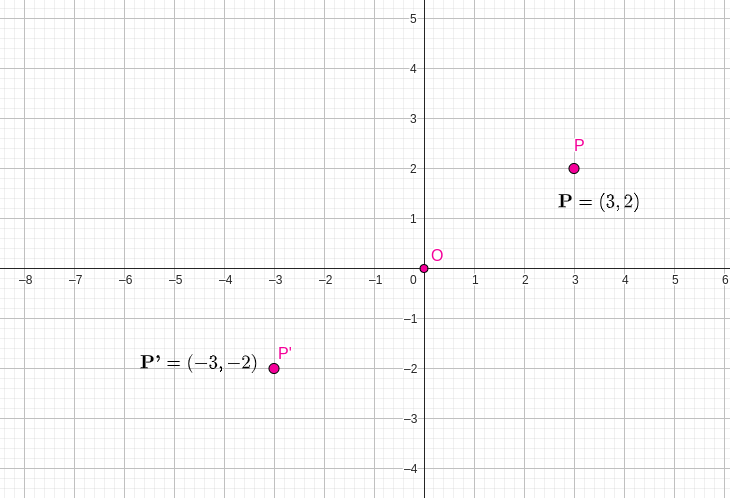

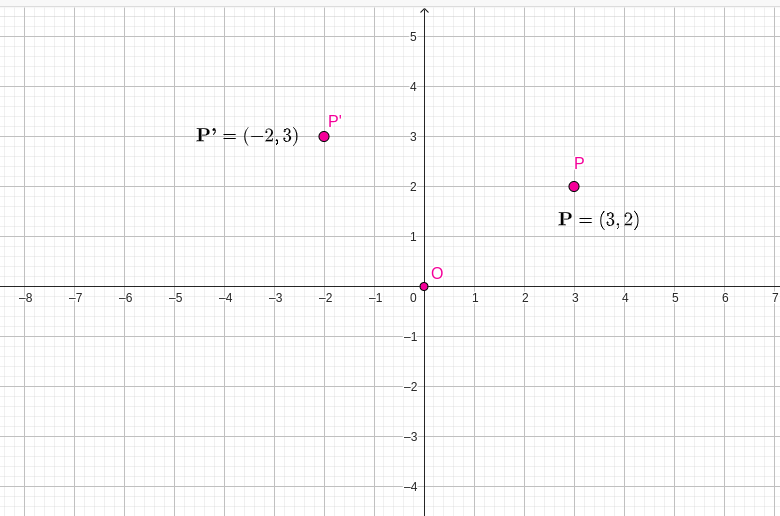

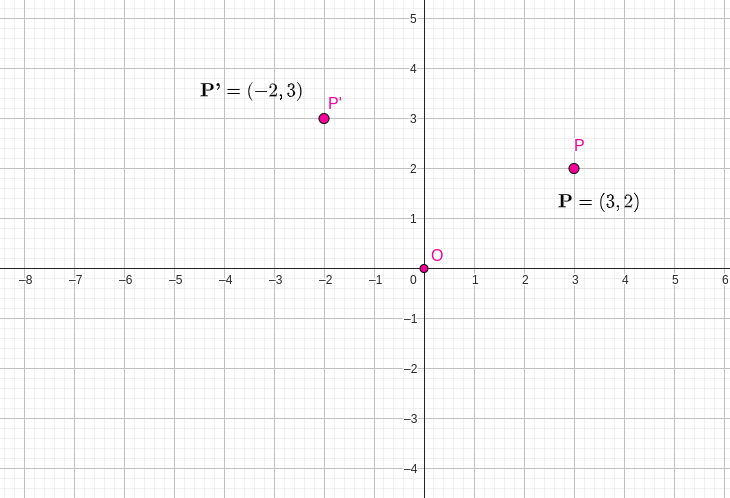

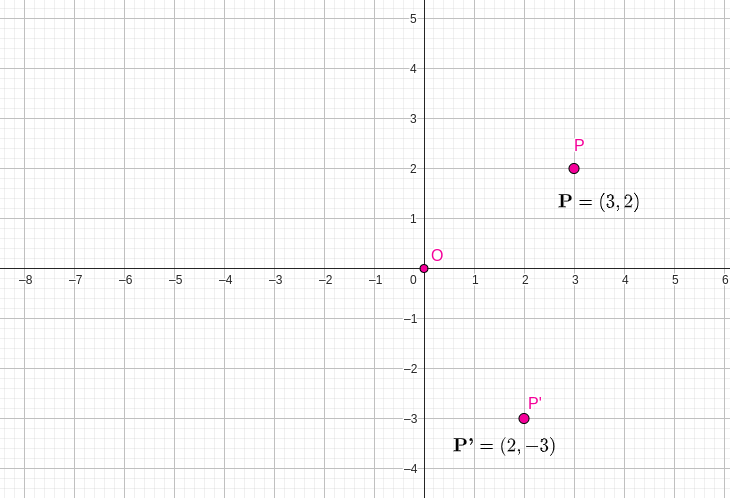

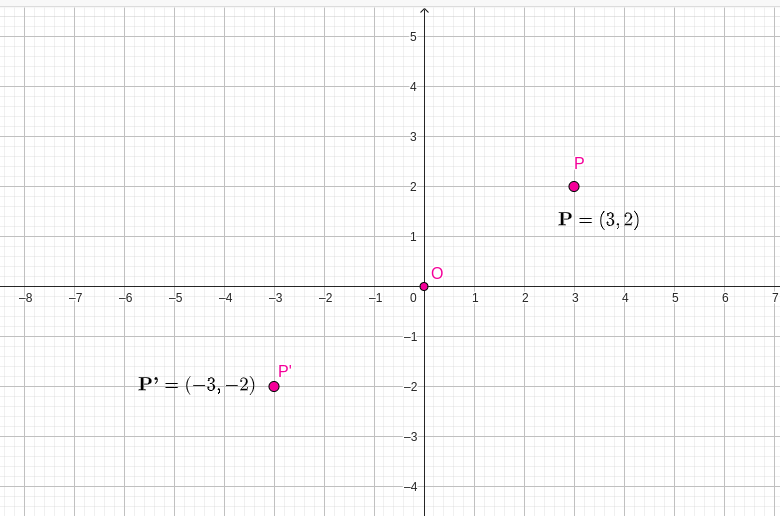

In summary, a point \((p,q)\) which is rotated through the indicated angles about the origin is shown in the table below.
Table2.3.5.
\(\textbf{Angle of rotation}\)
\(0^\circ\)
\(+90^\circ\)
\(-90^\circ\)
\(180^\circ\)
\(-180^\circ\)
\(+270^\circ\)
\(+360^\circ\)
\(-360^\circ\)
\(\textbf{image of (p,q)}\)
\((p,q)\)
\((-q,p)\)
\((q,-p)\)
\((-p,-q)\)
\((-p,-q)\)
\((q,-p)\)
\((p,q)\)
\((p,q)\)

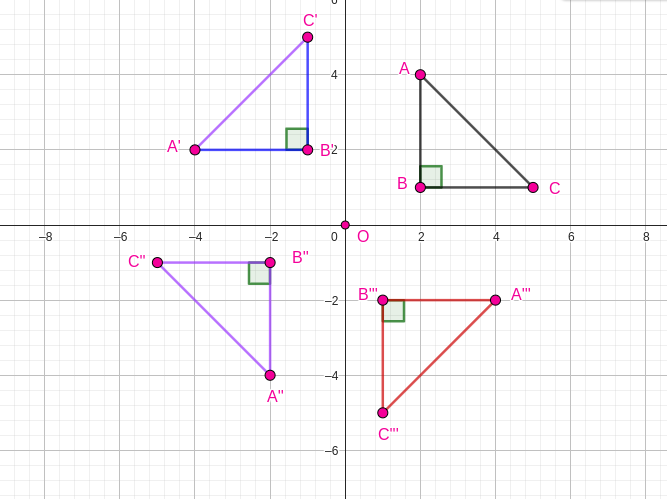

The figure below shows triangle \(ABC\) and its images after rotations about the origin with different angles of rotation (\(90^\circ\text{,}\)\(180^\circ\text{,}\)\(270^\circ\) and \(360^\circ\)).
Figure2.3.6.
Table2.3.7.
\(\textbf{Object}\)
\(A\, (2,4)\)
\(A\, (2,4)\)
\(A\, (2,4)\)
\(A\, (2,4)\)
\(A\, (2,4)\)
\(A\, (2,4)\)
\(A\, (2,4)\)
\(A\, (2,4)\)
\(B\, (2,1)\)
\(B\, (2,1)\)
\(B\, (2,1)\)
\(B\, (2,1)\)
\(B\, (2,1)\)
\(B\, (2,1)\)
\(B\, (2,1)\)
\(B\, (2,1)\)
\(C\, (5,1)\)
\(C\, (5,1)\)
\(C\, (5,1)\)
\(C\, (5,1)\)
\(C\, (5,1)\)
\(C\, (5,1)\)
\(C\, (5,1)\)
\(C\, (5,1)\)
\(\textbf{Angle of rotation}\)
\(0^\circ\)
\(+90^\circ\)
\(-90^\circ\)
\(+180^\circ\)
\(-180^\circ\)
\(270^\circ\)
\(+360^\circ\)
\(-360^\circ\)
\(\textbf{Image point}\)
\(A\, (2,4)\)
\(A'\, (-4,2)\)
\(A\, (4,-2)\)
\(A''\, (-2,-4)\)
\(A''\, (-2,-4)\)
\(A'''\, (4,-2)\)
\(A\, (2,4)\)
\(A\, (2,4)\)
\(B\, (2,1)\)
\(B'\, (-1,2)\)
\(B\, (1,-2)\)
\(B''\, (-2-1)\)
\(B''\, (-2,-1)\)
\(B'''\, (1,-2)\)
\(B\, (2,1)\)
\(B\, (2,1)\)
\(C\, (5,1)\)
\(C'\, (-1,5)\)
\(C\, (1,-5)\)
\(C''\, (-5-1)\)
\(C''\, (-5,-1)\)
\(C'''\, (1,-5)\)
\(C\, (5,1)\)
\(C\, (5,1)\)
\(\textbf{Rotation of Points by a Given Angle Around a Specified Center}\)
Consider a point \(A\, (4,3)\) .We are required to finding the coordinates of its image after a Rotation taking the centre to be \((1,2)\) and angle of rotation to be \(90^\circ\) ;
\((4,3)\) is mapped onto \((0,5)\text{.}\)
Given the point \((4,3)\) and the centre of rotation \((1,2)\text{,}\) To obtain this point \((0,5)\) without a graph, We follow this steps;
\begin{align*}
\text{x-coordinate}= \amp 1-(3-2)=0\\
\text{y-coodinate}= \amp 2+(4-1)=5\\
\text{Point of the image}= \amp (0,5)
\end{align*}
from the given points, for point \((4,3)\text{,}\)We let \(p=4\) and \(q=3\) and for the given centre \((1,2)\) we let \(x=1\) and \(y=2\text{.}\)
\(\textbf{In general a point (p,q) rotated through 90° about the centre (x,y) is mapped on to the point (x-(q-y)\, ,y+(p-x))}\)
Considering the same point \(P\text{,}\) but now the angle of rotation to be \(180^\circ\text{;}\) To find the coordinates of its image we follow the following steps:
Given the point \((4,3)\) and the centre of rotation \((1,2)\text{,}\) To find the point of the image we follow the following steps;
\(\textbf{In general a point (p,q) rotated through 180° about the centre (x,y) is mapped on to the point (2x-p\, ,2y-q)}\)
Example2.3.8.
A triangle \(ABC\) with coordinates \(A\,(2,1)\text{,}\)\(B\, (3,2)\) and \(C\, (3,4)\) is rotated through the centre and angle of \(90^\circ\) in a clockwise direction.Find the coordinates of its image
Solution.
Since triangle \(ABC\) is rotated in a clockwise direction with an angle of \(90^\circ\) through the origin, then the angle of rotation is \(-90^\circ\)
According to the rule, If we have our points \((p,q)\) which will be mapped to \((q,-p)\) if rotated through the centre and angle of rotation is \(-90^\circ\)
Therefore, we will individually apply the rotation formula to all three given points.
\begin{align*}
A (2,1) \rightarrow\amp A'(1,-2)\\
B (3,2) \rightarrow\amp B'(2,-3)\\
C (3,4) \rightarrow\amp C'(4,-3)
\end{align*}
The coordinates of triangle \(A'B'C'\) are \(A'\, (1,-2)\text{,}\)\(B'\, (2,-3)\) and \(C'\, (4,-3)\)
ExercisesExercises
1.
A point \(P\, (4,3)\) maps onto \(P'\, (-1,4)\) under a rotation R centre \((1,1)\text{.}\) Find the angle of rotation.
2.
Describe the rotation which maps the rectangle whose verticies are \(P\, (2,2)\text{,}\)\(Q\, (6,2)\text{,}\)\(R\,(6,4)\) and \(S\, (2,4)\) onto a rectangle whose verticies are \(P'\,(2,-2)\text{,}\)\(Q'\,(2,-6)\text{,}\)\(R'\,(4,-6)\) and \(S'\, (4,-2)\)
3.
Give the coordinates of the image of each of the following points when rotated through \(180^\circ\) in a clockwise direction about \((2,1)\)
(a) (4,-2)
(b) (-2,2)
(c) (4,4)
(d) (-2,-1)
(e) (-3,2)
4.
Find the coordinates of the verticies of the image of a triangle whose verticies are \(P\, (-4,6)\text{,}\)\(Q\, (-4,2)\) and \(R\, (-2,2)\) when rotated about the origin through:
(a) \(-90^\circ\)
(b) \(-180^\circ\)
(c) \(270^\circ\)
5.
The parallelogram whose verticies are \(A\, (4,4)\text{,}\)\(B\, (8,4)\text{,}\)\(C\, (2,2)\) and \(D\, (6,2)\) is rotated to give an image whose verticies are \(A'\, (4,-2)\text{,}\)\(B'\, (4,-6)\text{,}\)\(C'\, (2,0)\) and \(D'\, (2,-4)\text{.}\) Find the centre and angle of rotation.
Subsection2.3.3Rotational Symmetry
Subsubsection2.3.3.1Determining the Order of Rotational Symmetry of Plane Figures
Activity2.3.4.
Work in groups
Materials
A printed copy of the figure.
Pencils, push pin.
Constuction paper.
Pair of scissors.
Instructions
On a construction paper, trace and cut the figure above.
Place the tracing on top the printed copy and place a pin through their centre such that the tracing can rotate.
Manually rotate the tracing around the centre and note how many times the shape looks exactly the same in one full turn \((360^\circ).\)
Key Takeaway
The number of times the tracing of the star fits onto the printed copy in one complete turn is \(5 \) times. This is called the order of rotational symmetry, that is, the number of times the figure fits onto itself in one complete turn \((360^\circ).\)
When given a figure with the measure of the angle between the identical parts, the order of rotational symmetry can be computed as shown.
\begin{equation*}
\text{ Order of rotational symmetry} = \frac{360^\circ}{\text{angle between the identical parts}}
\end{equation*}
Example2.3.9.
Find the order of rotational symmetry in the figure below.
Solution.
\begin{equation*}
\text{ Order of rotational symmetry} = \frac{360^\circ}{\text{angle between the identical parts}}
\end{equation*}
\begin{equation*}
\text{ Order of rotational symmetry} = \frac{360^\circ}{45^\circ}
\end{equation*}
\begin{equation*}
\text{ Order of rotational symmetry} = 8
\end{equation*}
ExercisesExercises
1.
State the order of symmetry in the figures below.
2.
Find the order of rotational symmetry in the letters of the alphabet.
Subsubsection2.3.3.2Determining the Axis of Rotation and Order of Rotational Symmetry in Solids
Activity2.3.5.
Here is an activity to explore on axis of rotation of a box (cuboid).
Materials
A cuboid shaped box
Three strings
Pins, ruler and pencil
Instructions
Measure and note down the cuboid’s dimensions (length, width, height).
Mark the centre of box on each face using a pencil and make holes using pins through the centres.
Put the strings through the holes such that they appear as shown.
Suspend the cuboid and spin it around each of the strings and observe the alignment of the cuboid. Does the box appear to be the same as you rotate?
Key Takeaway
A solid has rotational symmetry if it can be rotated about a fixed straight line and still appears to be the same.
The straight line around which the object is rotated is called axis of rotation. In the activity, the strings represents the axes of rotational symmetry for the cuboid.
Example2.3.10.
Find the axes of rotation for a triangular pyramid whose cross-section is an equilateral triangle.
Solution.
The figure below shows a triangular prism whose cross-section is an equialteral triangle.
The axis of rotation passes through the traingular face. Therefore, the order of rotation through this axis is \(3.\)
The prism also has other \(3\) axes of rotation with each axis having \(2\) orders of rotational symmetry as shown in the figure below:
Example2.3.11.
Find the axis of rotation of a cone. What is the order of rotational symmetry?
Solution.
A cone has one axis of rotation with infinite numbers of order of rotational symmetry since its base is circular.
ExercisesExercises
1.
Find the other axes of rotation and order of rotational symmetry of the regular tetrehedron given one of the axes from \(A\) and passing at the center of the face \(BDC.\text{.}\)
2.
Find the axes of rotation and order of rotational symmetry of a triangular base pyramid whose base is:
Scalene triangle
Isosceles triangle
Subsection2.3.4Rotation and Congruence
Activity2.3.6.
Work in groups
Copy the trangle \(ABC\) and the point \(D\) on a graph paper. Using a ruler and a protractor, rotate the triangle \(-90^\circ\) about point \(D.\)
Draw a dotted line to connect vertex \(A\) to point \(D\)
Place a protractor at the line \(AD\) with the centre of the protractor at \(D\) and measure \(90^\circ.\) Using a ruler draw \(DA'\) such that \(AD\,=\,DA'.\)
Repeat the step above for for vertices \(B \text{ and} C.\)
Key Takeaway
Congruence refers to a relationship between two figures or objects, whereby, they are identical in size and shape.
Rotation is a type of transformation that repositions an object but preserves the shape and size of the object. Thus, rotation produces congruent figures.
\(\Delta ABC \) and \(\Delta A'B'C' \) are similar in size and shape. Therefore, they are said to be directly congruent.
Example2.3.12.
Triangle \(ABC\) is mapped onto \(A'B'C'\) after a rotation of \(-45^\circ\) and centre of rotation \(D.\)
\(\Delta ABC \text{ and } \Delta A'B'C'\) have the same shape and size.
The length of the corresponding sides of \(\Delta ABC \text{ and } \Delta A'B'C'\) are the same.
Every corresponding internal angle for the triangles remain the same.
Therefore, \(\Delta ABC \text{ and } \Delta A'B'C'\) are said to be directly congruent.
ExercisesExercises
1.
Identify the axes of rotational symmetry and their respective order in the following:
Cylinder
Rectangular pyramid
Sphere
Cube
2.
Identify the axes of rotational symmetry and their respective order for the following figures:
